定时提交“树莓派CPU、温度、内存使用率等数据”到服务器、并做网页监控图表

这个只是用于举例、

比如你可以用类似方式提交树莓派采集其他数据、诸如土壤温度、家用电器数据等等提交到服务器进行记录。

准备：
家里的树莓派、
你的服务器、
（这里以公网数据库服务器和网站服务器为例）

首先在你的服务器搭建数据库用于存储数据

然后创建纪录树莓派CPU、温度、内存使用率等数据的表

CREATE TABLE `raspberry_basic_log`  (
      `ID` int(11) NOT NULL AUTO_INCREMENT,
      `CPU_Use` double DEFAULT NULL,
      `RAM_Use` double DEFAULT NULL,
      `CPU_Temperature` double DEFAULT NULL,
      `DISK_Use` double DEFAULT NULL,
      `date` datetime(0) DEFAULT CURRENT_TIMESTAMP,
      PRIMARY KEY (`ID`) USING BTREE
    ) ENGINE = MyISAM AUTO_INCREMENT = 15 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Fixed;

接下来在你的服务器上的nginx或者apache之类的web服务器上写接受数据的接口（API）

这里以php为例，让树莓派以get方式提交数据、并写入到数据库

<?php


    $con = mysql_connect("127.0.0.1","你的用户名","密码");
    if (!$con)
      {
      die('Could not connect: ' . mysql_error());
      }

    mysql_select_db("数据库名", $con);

    mysql_query("INSERT INTO `hunter_raspberry`.`raspberry_basic_log`(`CPU_Use`, `RAM_Use`, `CPU_Temperature`) VALUES (".$_GET["cpuuse"].",".$_GET["ramuse"].", ".$_GET["cput"].");");


    mysql_close($con);


    ?>


然后、比如我们把以上php代码保存到我们的站点目录里
保存为api.php

确认我们的网站http://xxxxx.com/api.php 可以正常访问

接下来就用python在树莓派上编写获取和请求代码

简单思路：循环使用sleep延迟3600秒获取一次、并构造get请求、提交一次
实现每个小时采集一次

代码如下：

import os
    import httplib
    import time

    # Return CPU temperature as a character string
    def getCPUtemperature():
        res = os.popen('vcgencmd measure_temp').readline()
        return(res.replace("temp=","").replace("'C\n",""))

    # Return RAM information (unit=kb) in a list
    # Index 0: total RAM
    # Index 1: used RAM
    # Index 2: free RAM
    def getRAMinfo():
        p = os.popen('free')
        i = 0
        while 1:
            i = i + 1
            line = p.readline()
            if i==2:
                return(line.split()[1:4])

    # Return % of CPU used by user as a character string
    def getCPUuse():
        return(str(os.popen("top -n1 | awk '/Cpu$s$:/ {print $2}'").readline().strip()))

    # Return information about disk space as a list (unit included)
    # Index 0: total disk space
    # Index 1: used disk space
    # Index 2: remaining disk space
    # Index 3: percentage of disk used
    def getDiskSpace():
        p = os.popen("df -h /")
        i = 0
        while 1:
            i = i +1
            line = p.readline()
            if i==2:
                return(line.split()[1:5])

    while 2 > 1:
        time.sleep(3000)
        # CPU informatiom
        CPU_temp = getCPUtemperature()
        CPU_usage = getCPUuse()

        # RAM information
        # Output is in kb, here I convert it in Mb for readability
        RAM_stats = getRAMinfo()
        RAM_total = round(int(RAM_stats[0]) / 1000,1)
        RAM_used = round(int(RAM_stats[1]) / 1000,1)
        RAM_free = round(int(RAM_stats[2]) / 1000,1)

        # Disk information
        DISK_stats = getDiskSpace()
        DISK_total = DISK_stats[0]
        DISK_used = DISK_stats[1]
        DISK_perc = DISK_stats[3]

        if __name__ == '__main__':
            print('')
            print('CPU Temperature = '+CPU_temp)
            print('CPU Use = '+CPU_usage)
            print('')
            print('RAM Total = '+str(RAM_total)+' MB')
            print('RAM Used = '+str(RAM_used)+' MB')
            print('RAM Free = '+str(RAM_free)+' MB')
            print('')
            print('DISK Total Space = '+str(DISK_total)+'B')
            print('DISK Used Space = '+str(DISK_used)+'B')
            print('DISK Used Percentage = '+str(DISK_perc))
            url = "http://xxxx.com/api.php?cpuuse="+CPU_temp+"&ramuse="+str(RAM_used)+"&cput="+CPU_temp
            print(url)
            conn = httplib.HTTPConnection("xxxx.com")
            conn.request(method="GET",url=url)
            response = conn.getresponse()
            res= response.read()
            print res

然后
不是需要一个美观的折线图吗？233333

那就用php读取数据库  折线图的话、
就用百度开源的前端炫酷框架echarts好了
官方地址：
http://echarts.baidu.com/examples.html

下载下来 引入他的js
然后就开工吧
php读取数据库 然后写入到前端呈现的数据里就ok

最终效果是这样：
地址：http://raspberry.axibug.com:8801/

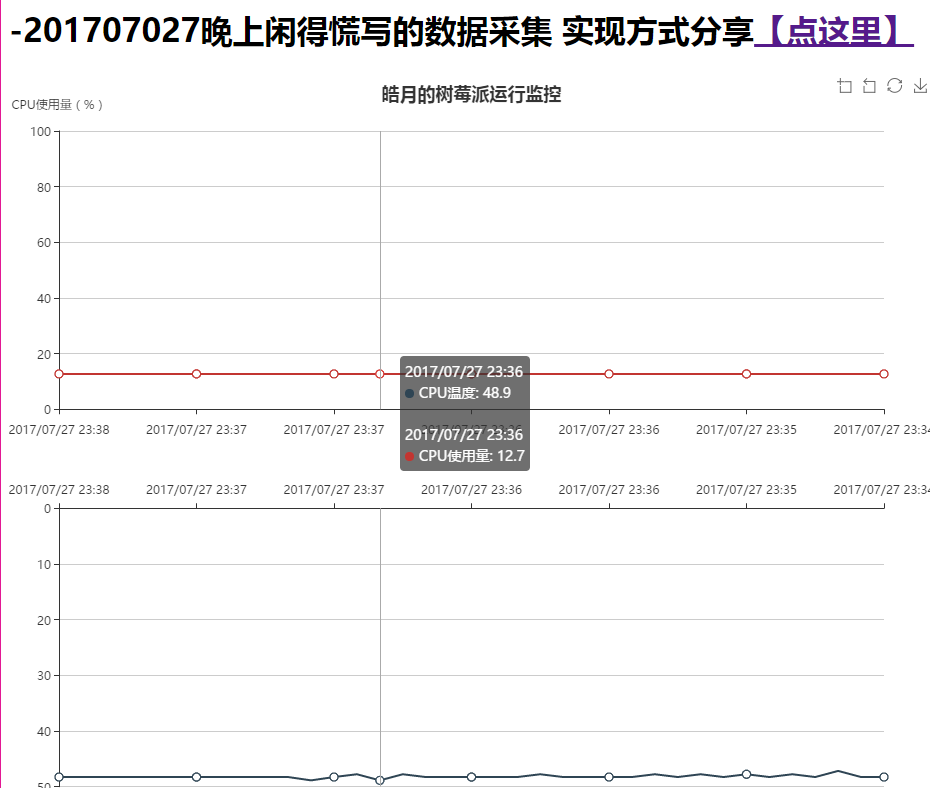

截图：
![图片标题](/api/file/getImage?fileId=597a09a727a7eb192c000102)

下面的php代码：

<?php
        mysql_connect("127.0.0.1", "你的数据库用户名", "密码") or
            die("Could not connect: " . mysql_error());
        mysql_select_db("hunter_raspberry");
        $result = mysql_query("SELECT * from raspberry_basic_log");

    $arr = array();
    while($row=mysql_fetch_array($result)){
        array_push($arr,$row);
    }

    ?>
    <html>
    <script src="echarts.min.js"></script>
    <body>
    <h1>-201707027晚上闲得慌写的数据采集 实现方式分享<a href='http://note.axibug.com/blog/post/akiragatsu/7612d5bcc53f'>【点这里】</a>	</h1>

        <div id="main" style="width: 100%;height:100%;"></div>
        <script type="text/javascript">
            // 基于准备好的dom，初始化echarts实例
            var myChart = echarts.init(document.getElementById('main'));

    var timeData = [
        <?php
    foreach($arr as $myrow)
    	{

    		echo "'".date('Y/m/d H:i', strtotime($myrow[5]).PHP_EOL)."',";
    }

    	?>
    ];

    timeData = timeData.map(function (str) {
        return str.replace('2009/', '');
    });

    option = {
        title: {
            text: '皓月的树莓派运行监控',
            subtext: '',
            x: 'center'
        },
        tooltip: {
            trigger: 'axis',
            axisPointer: {
                animation: false
            }
        },
        legend: {
            data:['流量','降雨量'],
            x: 'left'
        },
        toolbox: {
            feature: {
                dataZoom: {
                    yAxisIndex: 'none'
                },
                restore: {},
                saveAsImage: {}
            }
        },
        axisPointer: {
            link: {xAxisIndex: 'all'}
        },
        dataZoom: [
            {
                show: true,
                realtime: true,
                start: 30,
                end: 70,
                xAxisIndex: [0, 1]
            },
            {
                type: 'inside',
                realtime: true,
                start: 30,
                end: 70,
                xAxisIndex: [0, 1]
            }
        ],
        grid: [{
            left: 50,
            right: 50,
            height: '35%'
        }, {
            left: 50,
            right: 50,
            top: '55%',
            height: '35%'
        }],
        xAxis : [
            {
                type : 'category',
                boundaryGap : false,
                axisLine: {onZero: true},
                data: timeData
            },
            {
                gridIndex: 1,
                type : 'category',
                boundaryGap : false,
                axisLine: {onZero: true},
                data: timeData,
                position: 'top'
            }
        ],
        yAxis : [
            {
                name : 'CPU使用量（%）',
                type : 'value',
                max : 100
            },
            {
                gridIndex: 1,
                name : 'CPU温度（℃）',
                type : 'value',
                inverse: true
            }
        ],
        series : [
            {
                name:'CPU使用量',
                type:'line',
                symbolSize: 8,
                hoverAnimation: false,
                data:[
    			<?php
                    foreach($arr as $myrow)
    	{

    		echo "'".$myrow[1]."',";
    }

    			?>
    			]
            },
            {
                name:'CPU温度',
                type:'line',
                xAxisIndex: 1,
                yAxisIndex: 1,
                symbolSize: 8,
                hoverAnimation: false,
                data: [
                    <?php
                    foreach($arr as $myrow)
    	{

    		echo "'".$myrow[3]."',";
    }
    			?>
                ]
            }
        ]
    };

            // 使用刚指定的配置项和数据显示图表。
            myChart.setOption(option);
        </script>
    </body>
    </html>
